Suitable for TOYOTA LANDCRUISER 200 Series 2015-Current 4.5L V8 1VD-FTV Twin Turbo Diesel Exhaust With DPF

$1,265$1,845

or 4 fortnightly payments from $316 with Afterpay More info

Please ensure all exhaust system options have been selected to your preference – See ‘Options for exhaust’ below for more information

Clear

Creative Conversions Chassis Extensions

What size Creative Conversions chassis extension do you have?

Beaudesert Exhaust’s full twin 2 3/4″ into 3 1/2″ mandrel bent exhaust system to suit the Toyota LandCruiser 200 Series with DPF.



Rugged

Rugged is our standard system which is made out of 441 grade stainless steel tube and is then painted in a heat proof paint.

Read more about 441 grade stainless steel and its benefits on our FAQ page.



Ultimate

Ultimate is our premium system which is made out of 304 grade stainless steel tube that we polish in-house.



Creative Conversions chassis extensions available

Other extensions are available but please enquire before purchase.



This exhaust starts after the Diesel particulate filter (DPF) to comply with ADR laws.



A Diesel Particulate Filter (DPF) reduces the emissions from diesel fuelled vehicles. The filter traps diesel soot and once it is full it must be cleaned. This occurs through a process called “regeneration”, where the diesel particles are burnt off at high temperatures.



The DPF is not the only restriction in your exhaust. The factory pipe size and muffler both contribute to some loss in power and torque. On the factory exhaust system the airflow is restricted by the chambered internals of the muffler, as well the reduced size tube on each end. For vehicles fitted with a DPF our exhaust kits come standard with a small resonator this gives your vehicle the best airflow.



We have found through research and development that a 2 ¾” into 3 1/2” exhaust system performs better than any other size for this vehicle. Not only have we completed real world testing, we also receive significant amounts of customer feedback regarding overall performance and fuel economy gains a Beaudesert Exhaust system can give your vehicle. Improvements are not only seen by those towing, but by everyday drivers who want more from their vehicle.

Mandrel bent, welded and manufactured in our workshop in South East Queensland, this high quality exhaust system includes:

  • Exhaust starts after Diesel Particulate Filter to comply with ADR laws
  • Perforated straight through muffler and rear muffler as standard
  • No muffler pipe and no rear muffler pipe is available as an additional pipe for a louder note
  • This system can be purchased with no mufflers – designed for off road use only  Beaudesert Exhaust recommends purchasing a muffler or rear muffler then add the no muffler pipe. This is for legal reasons varying from state to state
  • Polished stainless steel tip on 441 grade stainless steel systems standard
  • 3 bolt 10mm 304 grade stainless steel flange plates
  • Reinforced brackets with supports – 12mm 304 grade stainless steel rod with knobs ensures the hangers don’t fall out of rubbers
  • Polished stainless steel muffler, rear muffler and exhaust tip comes standard
  • Systems are available in 441 grade stainless steel painted in a high temperature paint or 304 grade polished stainless steel
  • Zinc plated locking nuts and bolts
  • Fitting Kit and easy to follow instructions
  • Boxed and bubble wrapped for freight
  • Freighted Australia wide with insurance in a prompt time frame

Options for exhaust

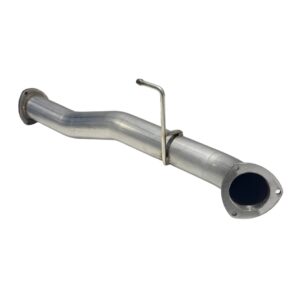

The no muffler pipe is a replacement pipe that bolts in place of the muffler or resonator to gain maximum note.

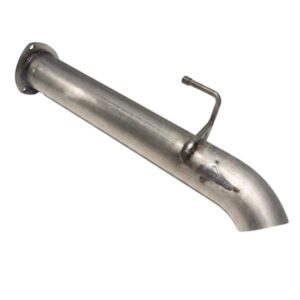

The no rear muffler pipe is a replacement pipe that bolts in place of the rear muffler to gain maximum note.

If you wish to have both muffler section and no muffler pipe, select the muffler or resonator above and click here to add the no muffler pipe to your cart.

If you wish to have both rear muffler section and no rear muffler pipe, select the rear muffler above and click here to add the no muffler pipe to your cart.

You can also change the look of your exhaust with our tailpipe options: (standard tailpipe included)

  • Side exit tailpipe exiting behind the passenger rear wheel with polished tip $65 extra

Please note: Our team will endeavour to dispatch your order as quickly as possible, however, some options when selected may require a longer fabrication time.



Would you like your system fitted by one of our experts?
Our workshop is located at 158 Enterprise Dr, Beaudesert QLD 4285.



Approximate fitting time is 2 Hrs

Fitting cost for this system is $250*
Fitting will be charged on the day of your appointment.



Select fitting option at checkout and one of our staff members will be in contact with you to confirm availability.

*Please be aware additional charges may apply on the day of fitment if standard system needs modifications. Ensure all your aftermarket modifications (located on the checkout page) are listed correctly to try and avoid unexpected charges.
