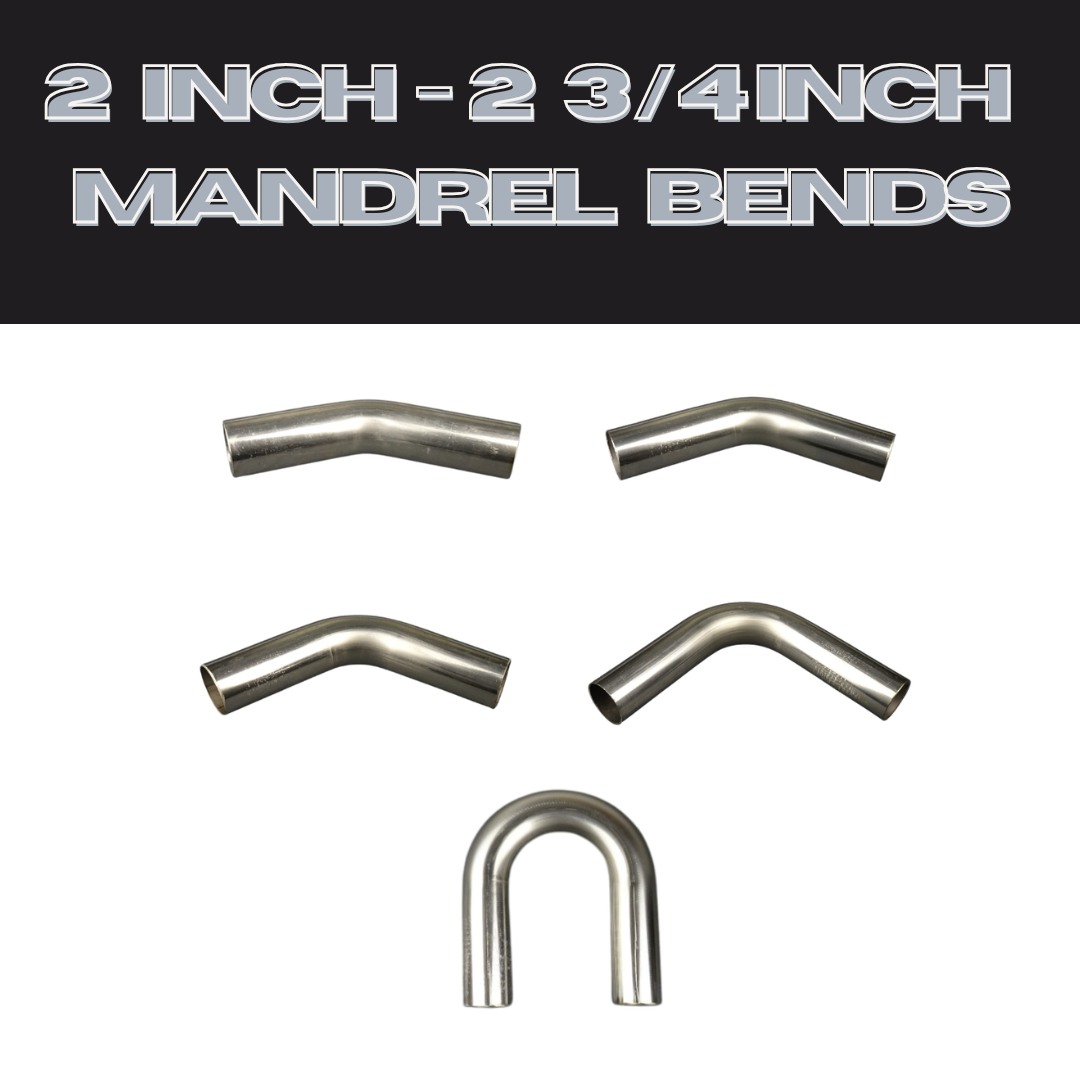

2″ – 2 3/4″ Mandrel Bends

Tube Size-

• 2in (50.8mm)
• 2 1/8in (53.9mm)
• 2 1/4in (57.1mm)
• 2 3/8in (60.3mm)
• 2 1/2in (63.5mm)
• 2 3/4in (70mm)

Material-

• Mild Steel
• Stainless Steel 304 Grade

Degree-

• 15˚
• 18˚
• 30˚
• 45˚
• 60˚
• 90˚
• 180˚
• 180˚ J Bend

Wall Thickness-

• 1.2mm
• 1.6mm
• 2mm

2″ Radius-

• 63.5 CLR / 1.25D
• 76.2 CLR / 1.5D
• 101.6 CLR / 2D
• 152.4 CLR / 3D

2 1/8″ Radius-

• 80.85 CLR / 1.5D
• 102.4 CLR / 1.9D

2 1/4″ Radius-

• 71.37 CLR / 1.25D
• 85.65 CLR / 1.5D
• 114.3 CLR / 2D
• 142.75 CLR / 2.5D

2 1/8″ Radius-

• 90.45 CLR / 1.5D

2 1/2″ Radius-

• 63.5 CLR / 1D
• 71.37 CLR / 1.25D
• 95.25 CLR / 1.5D – Normal Radius

2 3/4″ Radius-

• 105 CLR / 1.5D

Standard Leg Length-

• Approximately 110-150mm
