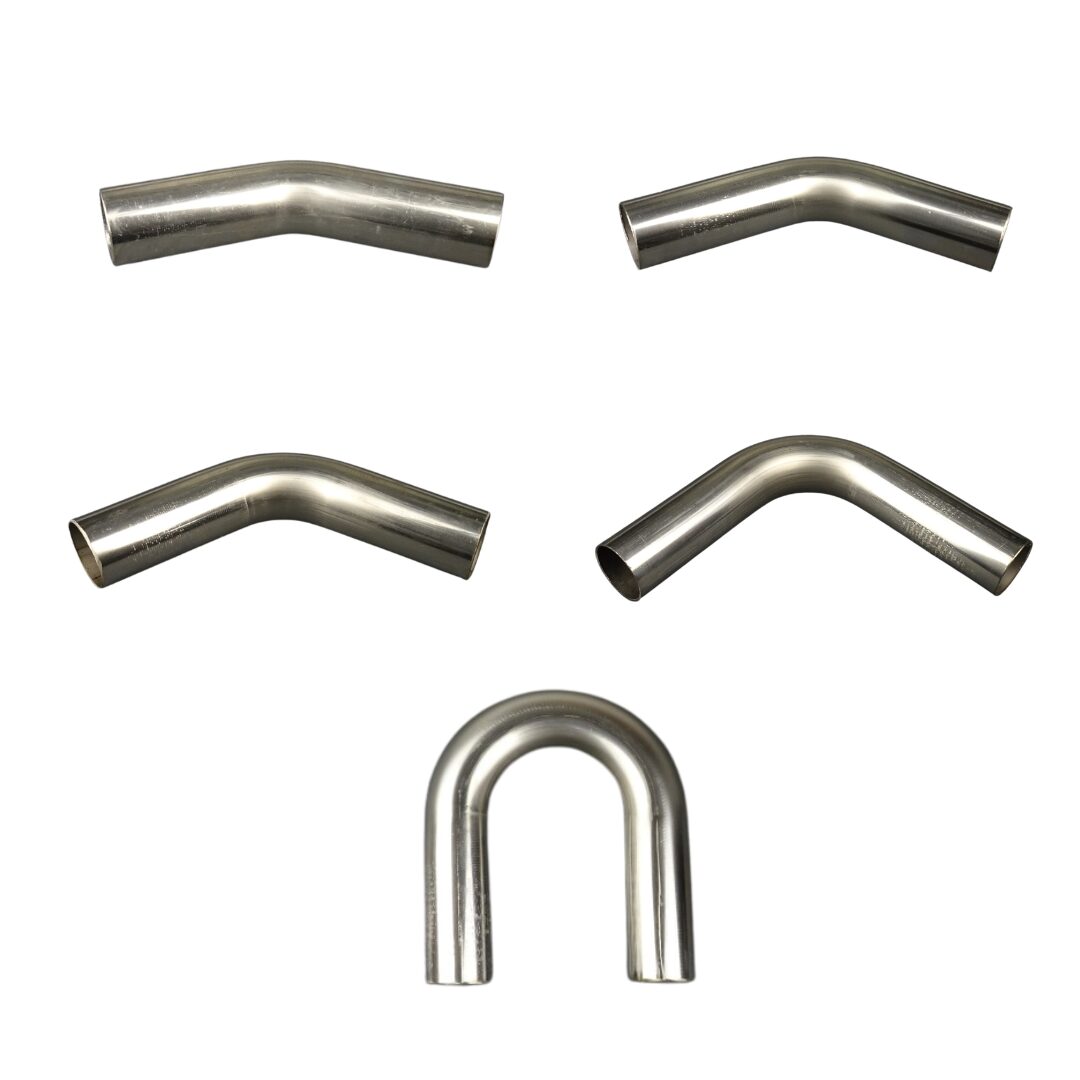

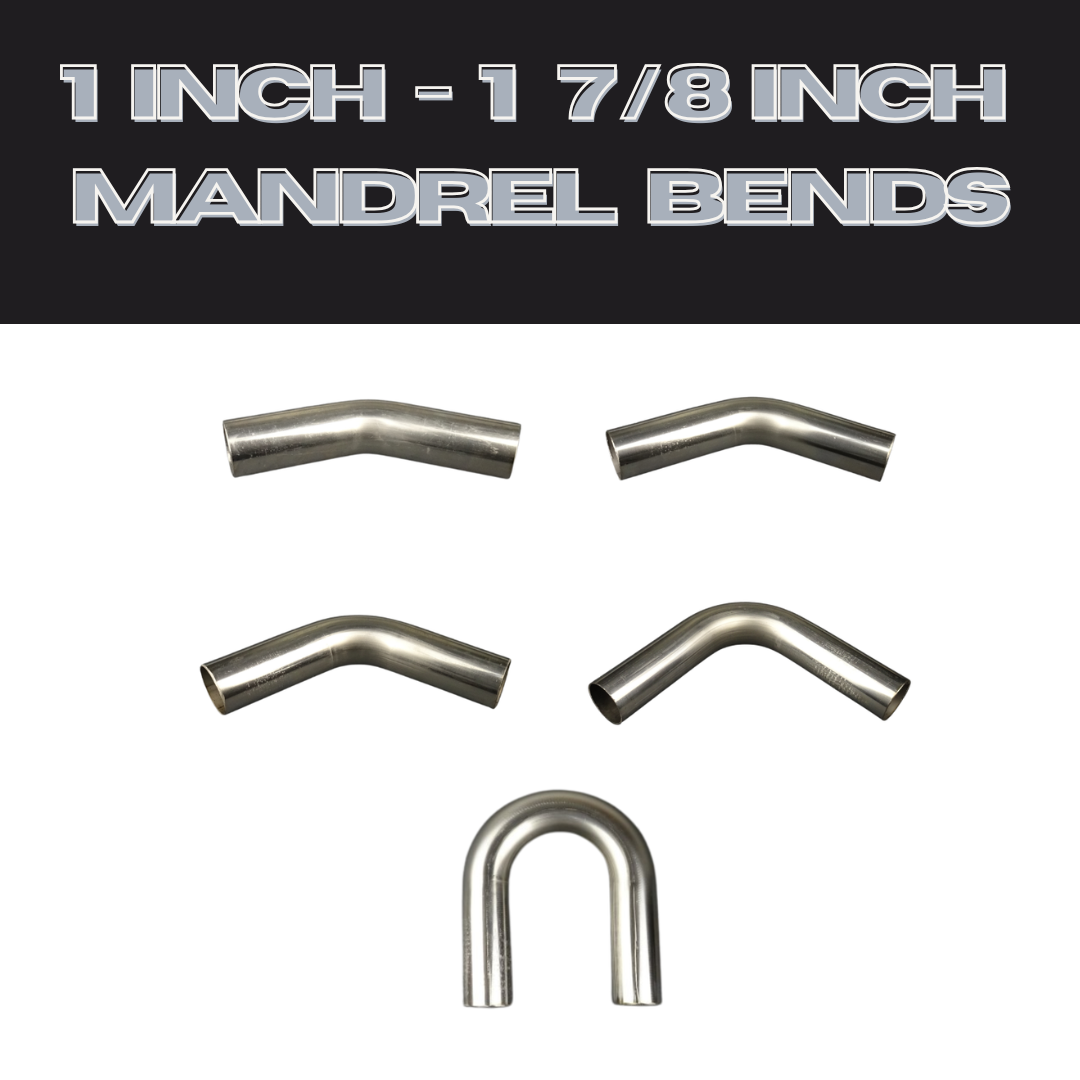

1″ – 1 7/8″ Bends

Tube Size-

• 1” (25.4mm)
• 1 1/8” (28.5mm)
• 1 1/4in (31.7mm)
• 1 1/2in (38.1mm)
• 1 5/8in (41.2mm)
• 1 3/4in (44.4mm)
• 1 7/8in (47.6mm)

Material-

• Mild Steel
• Stainless Steel 304 Grade

Degree-

• 15˚
• 18˚
• 30˚
• 45˚
• 60˚
• 90˚
• 180˚
• 180˚ J Bend
• 180˚ Long Leg

Wall Thickness-

• 1.2mm
• 1.6mm
• 2mm

1″ Radius-

• 38.1 CLR / 1.5D

1 1/8″ Radius-

• 42.75 CLR / 1.5D

1 1/4″ Radius-

• 47.55 CLR / 1.5D
• 79.25 CLR / 2.5D

1 1/2″ Radius-

• 57.15 CLR / 1.5D
• 76.2 CLR / 2D
• 95.25 CLR / 2.5D

1 5/8″ Radius-

• 51.59 CLR / 1.25D
• 61.8 CLR  / 1.5D
• 78.28 CLR / 1.9D

1 3/4″ Radius-

• 55.56 CLR / 1.25D
• 63.56 CLR / 1.43D
• 66.67 CLR / 1.5D
• 95.56 CLR / 2.15D

1 7/8″ Radius-

• 59.53 CLR / 1.25D
• 63.56 CLR / 1.34D
• 71.43 CLR / 1.5D
• 99.96 CLR / 2.15D

Standard Leg Length-

• Approximately 100-150mm
